Module type: computer module
Model name: TFB - C408 cable TV signal distribution module
Take up the space is: 1 U
Product specification: 168 mm X 35 mm
Function description: this module provides cable television (CATV) signal is 1 in 4 out, two-way broadband 5-1000 MHZ, full frequency attenuation is not more than 8 db, can well support
Digital TV and broadband cable. Note: if you have extra output, please use the impedance terminal termination. Please make sure that cable input signal for the 70 + 2 db
(5 m - 1000 - m).

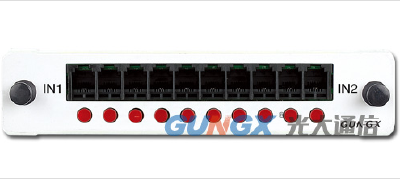

Module type: voice module
Model name: TFB - C28 voice module
Take up the space is: 1 U
Product specification: 168 mm X 35 mm
Function description: provide 2 into 8 out of telephone, using RJ11 interface, and combination switch control the reinsurance of inlet. IN1 / IN2 for two perimeter interface, other interface for distribution
Through the red button flexible management call each room.
