Into the wall size: 300 mm X 200 mm X 100 mm

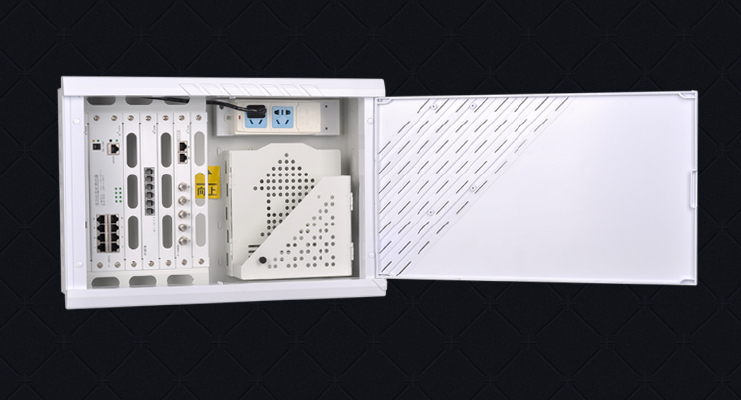

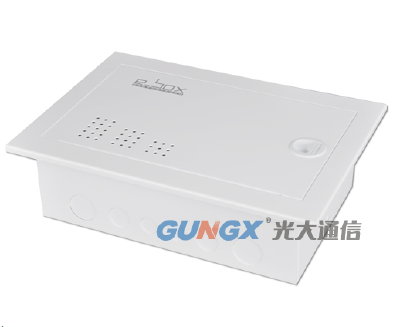

Case description: all metal casing, can choose all IT series modules. Panel material: 1.2 mm high quality cold-rolled steel plate, the surface import inferior smooth milky electrostatic spraying. Body material: 1.2 mm high quality cold-rolled steel plate, the surface import inferior smooth milky electrostatic spraying.

Configuration and function:

IT - 5 RTX: this module is an external network interface (WAN), four local network interface (LAN) to realize four computers under the premise of high-speed Internet, also can automatically dial-up, intelligent Internet access, support ADSL, LAN, and Cable all major Internet way, truly a dial-up, permanent online setting method (see "router operation instruction handbook"). Power supply: 7.5 V DC.

IT - SPWR: this module input for 220 V / 50 hz, the output is DC 7.5 V / 1 a, IT - 5 RTX dedicated power supply module.

IT - 28: provide 2 into 8 out of telephone, using RJ11 interface, combined switch and control of the service entrance. IN1 / IN2 for two perimeter interface, other interface for distribution, through the red button flexible management call each room.

IT - 408 IP: this module provides cable television (CATV) signal is 1 in 4 out, two-way 5-1000 MHZ bandwidth, full frequency attenuation is not more than 8 db, can support the digital television and cable broadband smoothly. Provide digital TV control signal interface into 1 out of 1. Note: if you have extra output, please use the impedance terminal termination. Please make sure that cable input signal for the 70 + 2 db (5 m - 1000 - m).

IT - 110: low voltage terminal 10 road, three table can be used for remote copy signals, intercom doorbell, emergency button control system of the connection. At the same time, provide visual monitoring or visual telephone talk back into 1 out of 1.
