Model: GRX12-45

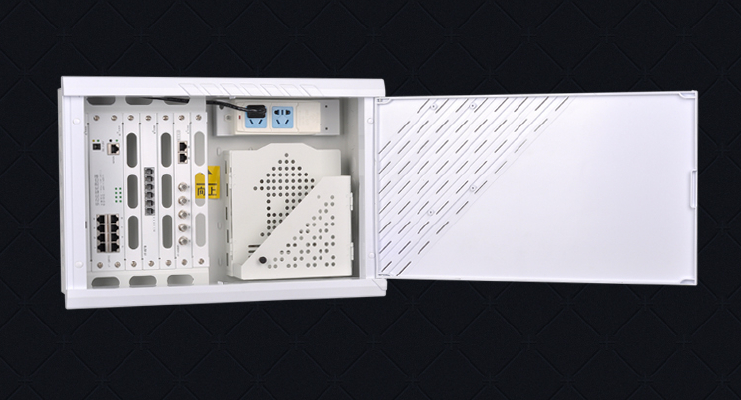

Name: GRX12-45 fiber door info box package

Into the wall size: 450 mm X 300 mm X 120 mm

Capacity: 4 u

Standard configuration: cable clamp, optical fusion flange and two multi-function strip (AC220V), ONU mounting bracket, truly achieve FTTH (fiber to the home)

Case description: plastic panel, metal pan, can choose all IT series modules. Panel material: ABS plastic. Body material: 1.0 mm high quality cold-rolled steel plate, surface electrostatic spraying of fine lines, white scratch resistance.

The above products has applied for patent

Configuration and function:

IT - 9 RTC: this module is an external network interface (WAN), eight local network interface (LAN), under the premise of high-speed Internet, achieve the computer can automatically dial-up, intelligent Internet access, support ADSL, LAN, and Cable all major Internet way, truly a dial-up, permanent online setting method (see "router operation instruction handbook"). Power supply: 7.5 V DC.

IT - SPWR: this module input for 220 V / 50 hz, the output is DC 7.5 V / 1 a, for IT - 5 RTL, IT - 9 RTC, IT - 1115 - a active modules such as power supply.

IT to 15 TB: voice call interface 1 to 5, with RJ11 interface.

IT - 408 IP: this module provides cable television (CATV) signal is 1 in 4 out, two-way 5-1000 MHZ bandwidth, full frequency attenuation is not more than 8 db, can support the digital television and cable broadband smoothly. Note: if you have extra output, please use the impedance terminal termination. Please make sure that cable input signal for the 70 + 2 db (5 m - 1000 - m), also provides digital TV control signal interface into 1 out of 1.

Fill in the blanks IT 0.5 threading hole: line is convenient for a module.
